2301994-2
Manufacturer:
TE Connectivity
Mfr.Part #:
2301994-2
Datasheet:
Description:

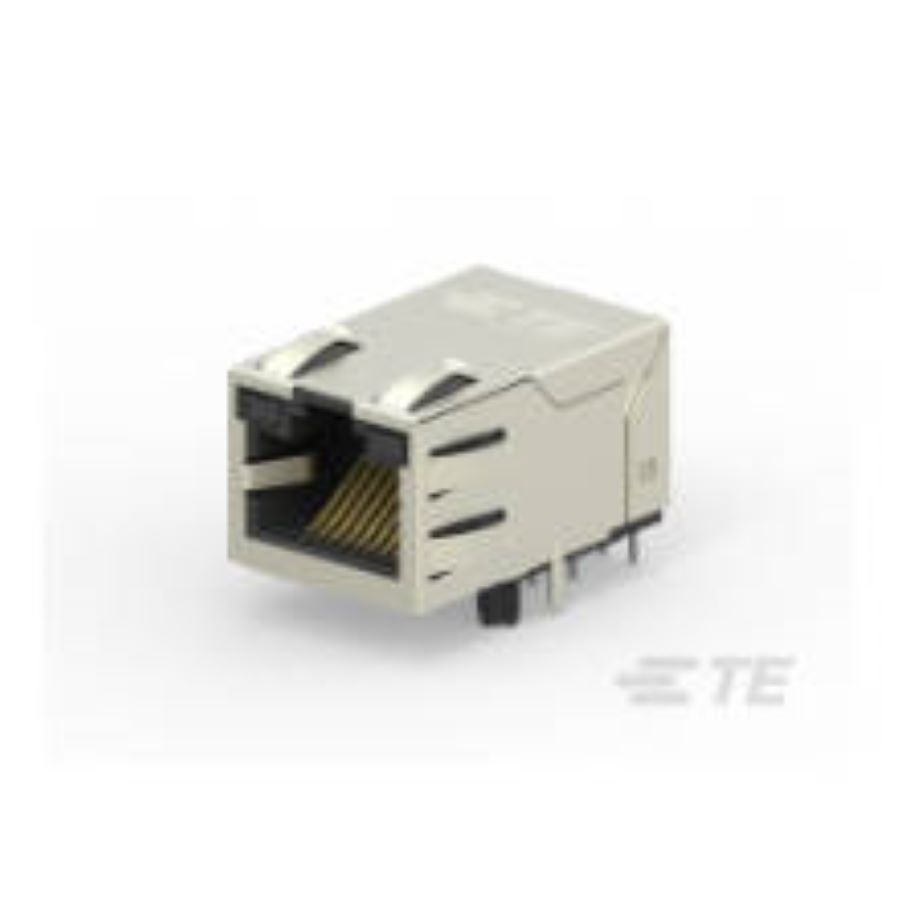

Modular / Ethernet Connectors Through Hole RJ45
| Parameter | Value |
|---|---|
| Termination | Solder |
| Max Operating Temperature | 85 °C |
| Min Operating Temperature | -40 °C |
| Height | 13.83 mm |
| Packaging | Reel |
| RoHS | Compliant |
| Contact Plating | Tin |
| Flammability Rating | UL94 V-0 |
| Orientation | Right Angle |
| Lifecycle Status | Production (Last Updated: 2 weeks ago) |
| Color | Black |
| Shielding | Shielded |
| Number of Contacts | 8 |
| Element Configuration | Single |
| Data Rate | 100 Mbps |
| Direction(Counting Sequence) | Up |
| Number of Positions | 8 |
| Insulation Material | Liquid Crystal Polymer |
| Housing Material | Polymer |
| Number of Ports | 1 |
| Housing Color | Black |
| Keyed | No |
| Number of Positions Loaded | 8 |
| PCB Mounting Orientation | Right Angle |
| Manufacturer Lifecycle Status | ACTIVE (Last Updated: 2 weeks ago) |
| Sealable | No |
| Contact Finish Thickness - Mating | 760 nm |
| Mounting Angle | Right Angle |
| Performance Category | Cat 5 |
| Accessory Type | |
| USOC Codes | RJ45 |
| Number of Positions/Contacts | 8P8C |
Stock: 59
Distributors
pcbx
pcbxUnit Price$8.29014
Ext.Price$8.29014
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $8.29014 | $8.29014 |
| 50 | $5.52676 | $276.33800 |
